功能特點

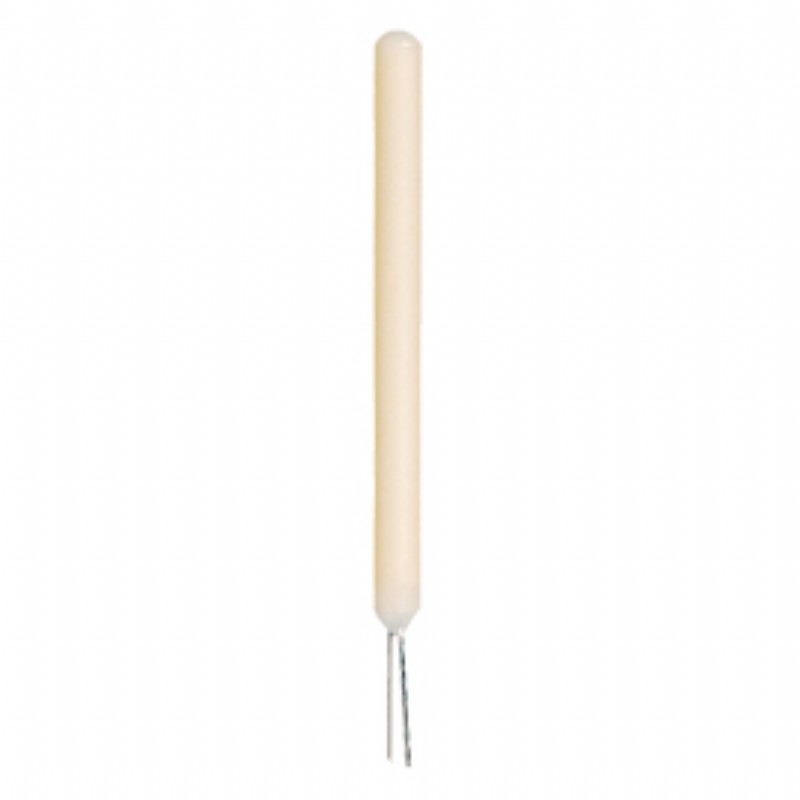

PK系列溫度在-200 到 +800°C之間
標準標稱值和公差
作為單或雙溫度傳感器
擴展溫度測量范圍
耐高溫抗沖擊
優異的溫度波動穩定性

JUMO介紹：德國JUMO GmbH & KG公司成立于1948年，位于德國中部城市Fulda。公司經過六十多年的發展，已經成為歐洲著名的儀表制造廠商，公司主要致力于生產高質量的傳感器、變送器及控制器，可提供工業溫度、壓力、濕度、液位、流量、pH值、電導率、氧化還原值的測量、控制及記錄產品。除了在德國Fulda的主要工廠外，JUMO在全球范圍內擁有二十三家子公司、四十多家代理商及銷售分支結構。JUMO憑借多年的經驗及優秀的品質一直為自動化測量及控制工程領域的客戶提供著專業水準的產品和服務。

技術參數

Standard	EN 60 751
Temperature coefficient	α = 3.850 x 10-3°C-1 (between 0 and 100°C)
Temperature range	-200 to +600°C
Tolerance	Temperature validity range Class 1/3 DIN B: - 70 to +250°C Temperature validity range Class A: -200 to +600°C Temperature validity range Class B: -200 to +600°C
Measuring current	recommended: 1.0mA
Maximum current	20mA
Operating conditions	Platinum-ceramic temperature sensors may not be used unprotected in humid ambient conditions (condensation) or corrosive atmospheres. Because of their special internal construction, the temperature sensors only have a limited resistance to shock and vibration. However, they exhibit excellent temperature stability and are free from hysteresis. The user may have to carry out some checks before operation.
Connecting wires	The connecting wires are made of a palladium-gold alloy, 0.27mm thick. On the versions H 2 x Pt100, the connecting wires of the first measurement winding are longer (L1 +1mm), to mark the individual winding more clearly. Any unnecessary bending of the connecting wires must be avoided, as this may result in material fatigue and a wire break.
Measurement point	The nominal value specified refers to the standard connecting wire length L1. The measurement is acquired 2mm from the open end of the wire. If the wire length is altered, changes in resistance will occur, which may result in the tolerance class not being met.
Long-term stability	max. R0 drift 0.03%/year (see Data Sheet 90.6000 for definitions)
Insulation resistance	>10MΩ at room temperature
Vibration strength	see EN 60 751, Section 4.4.2
Shock resistance	see EN 60 751, Section 4.4.1
Self-heating	Δt = I 2 x R x E (see Data Sheet 90.6000 for definitions)
Packaging	Blister pack
Storage	In the standard packaging, JUMO temperature sensors, PK/H style, can be stored for at least 12 months under normal ambient conditions. It is not permissible to store the sensors in aggressive atmospheres, corrosive media, or in high humidity.
